Description

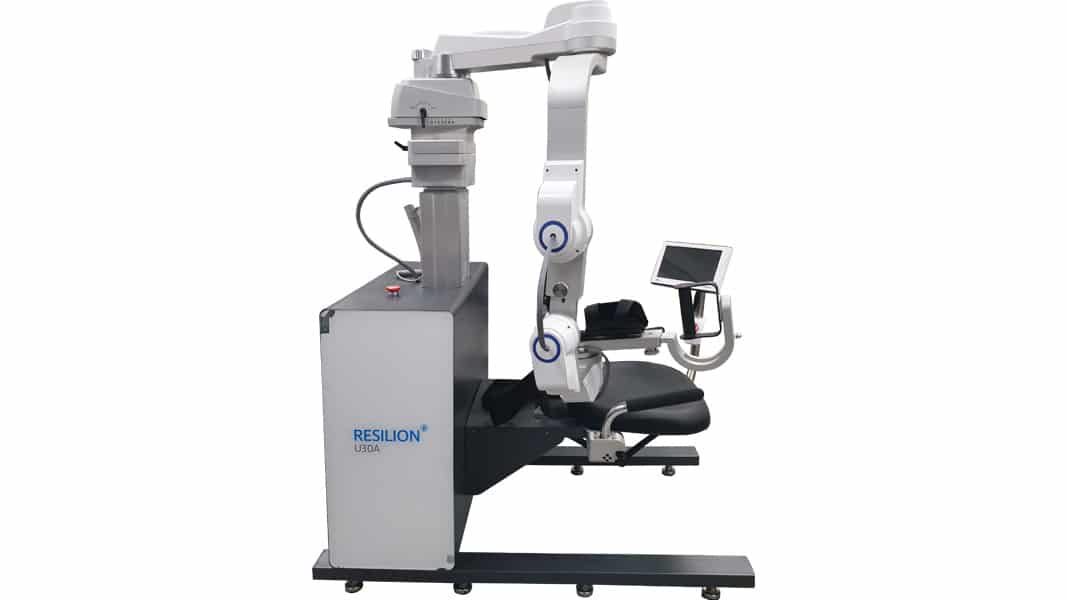

Resilion U30A is a stationary medical rehabilitation system for upper-limb joint rehabilitation, especially shoulder-related motion. The brochure describes it as an upper-limb isokinetic rehabilitation trainer for joint motion recovery, muscle strength measurement, and muscle reconstruction.

The system includes an ergonomic structure based on wearable robot technology, ROM measurement, isokinetic exercise capacity testing, simple left/right switching, user registration, and exercise data history management/output.

Application(s): Medical upper-limb rehabilitation; shoulder-related joint-motion recovery; strength measurement; muscle rebuilding

Exoskeleton Characteristics: CPM, isokinetic, isotonic, and isometric exercise modes; ROM measurement; isokinetic exercise-capacity testing; left/right switching; user registration and exercise-data history management/output; possible future expansion to cognitive rehabilitation; 4 DOF

Weight of Device: 127.5 kg (281.1 lb)

Rough ROM values: forward elevation 0°–150°; lateral elevation 0°–150°; horizontal adduction/abduction -10°–110°; rotation -90°–90°; elbow movement 0°–150°

Hexar Robotics / Hexar Humancare / HEXAR – see company profile
